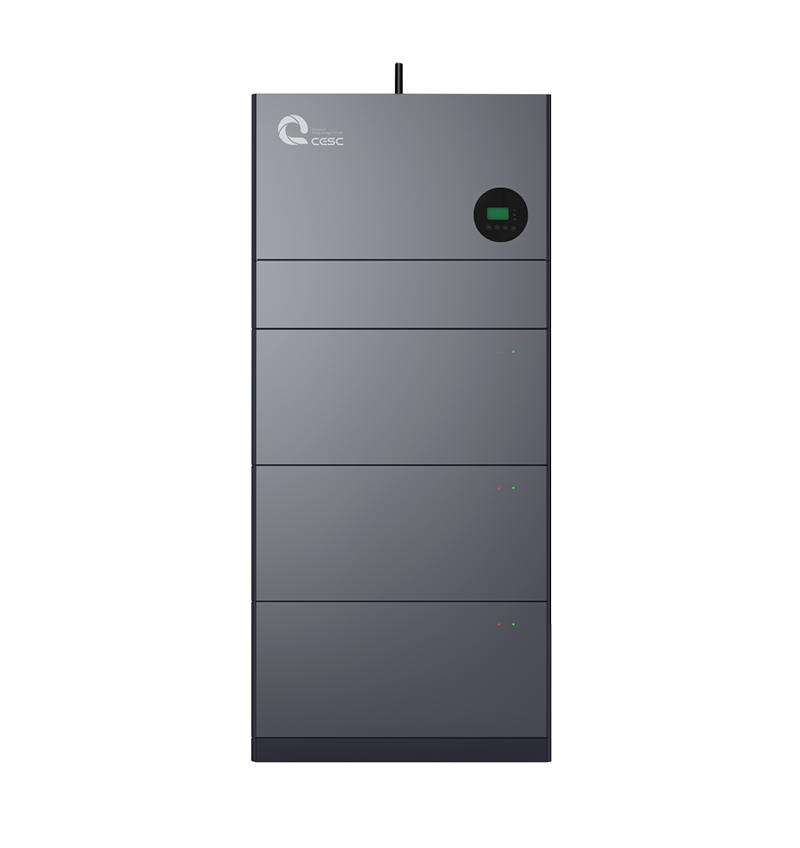

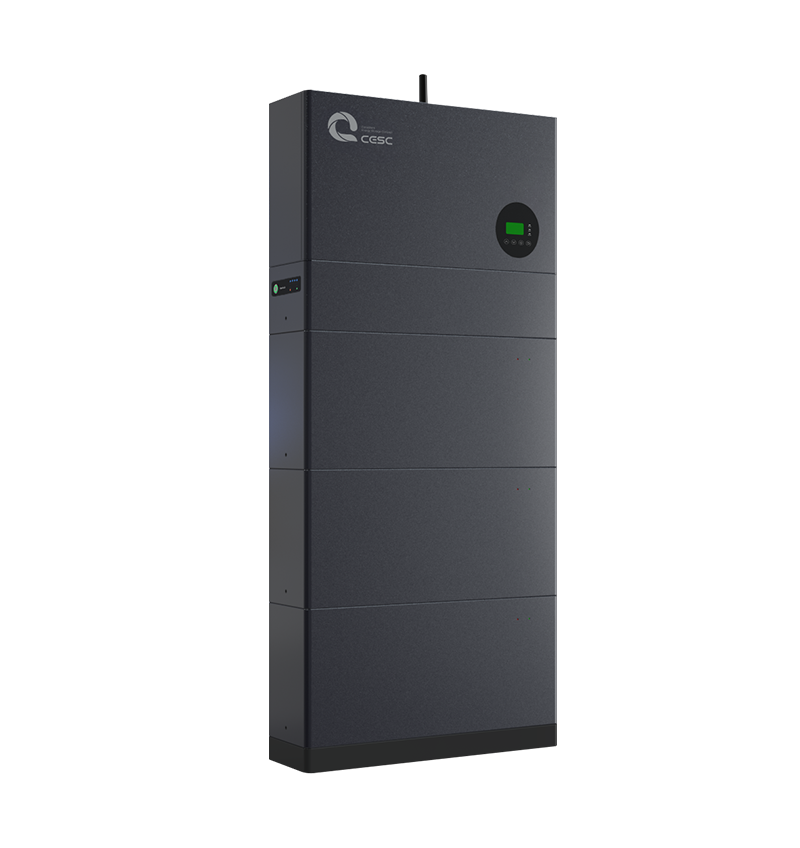

The Venus All-in-One High-Voltage Three-Phase Energy Storage System is a smart, powerful solution designed to provide reliable energy for your home. By integrating an inverter and battery into one compact unit, it makes it easier to maximize your solar energy, ensure seamless backup power, and reduce your electricity bills. This system is ideal for modern homes looking for a high-performance and easy-to-install energy solution

· Ultra-fast backup with <10 ms switch time and 200% overload

· 50A battery current for high-demand appliances

· Battery scalable design stacks up to 3 modules and supports 4 clusters in parallel

· 98.4% system efficiency and 96% battery efficiency

· Built-in EMS with FCAS and VPP integration

· Multi-level protection and up to 3 MPPT channels

Battery Type: LFP ( LiFe PO4)

Nominal Voltage: 102.4V

Nominal Energy: 5.3kWh

Max Charge / Discharge Current: 50A

Max Dimension [W/ D/H]: 740*220*1652mm

Max Weight: 191kg

Operating Temperature: Charge:0°C-50°C/Discharge:0°C-50°C

Storage Temperature: 0°C - 35°C

Ingress Protection: IP65
